Azure Powershell – How to Build and Deploy Azure IaaS VMs

Featured

Throughout my career, my primary role has always been to make things more efficient and automated.  And now more than ever, automation is needed to manage and deploy IT services at scale to support our ever-changing needs.

In my opinion, one of the most convenient aspects of public cloud-based services is the ability to host virtual machines (VMs). Hosting VMs in the cloud doesn’t just mean putting your VMs in someone else’s datacenter. It’s a way to achieve a scalable, low-cost and resilient infrastructure in a matter of minutes.

What once required hardware purchases, layers of management approval and weeks of work now can be done with no hardware and in a fraction of the time. We still probably have those management layers though 🙁

Microsoft Azure is in the lead pack along with Google (GCP) and Amazon (AWS). Azure has made great strides over the past few years on in its Infrastructure as a Service (IaaS) service which allows you to host VMs in their cloud.

Azure provides a few different ways to build and deploy VMs in Azure.

  • You could choose to use the Azure portal, build VMs through Azure Resource Manager(ARM) templates and some PowerShell
  • Or you could simply use a set of PowerShell cmdlets to provision a VM and all its components from scratch.

Each has its advantages and drawbacks. However, the main reason to use PowerShell is for automation tasks. If you’re working on automated VM provisioning for various purposes, PowerShell is the way to go 😉

Let’s look at how we can use PowerShell to build all of the various components that a particular VM requires in Azure to eventually come up with a fully-functioning Azure VM.

To get started, you’ll first obviously need an Azure subscription. If you don’t, you can sign up for a free trial to start playing around. Once you have a subscription, I’m also going to be assuming you’re using at least Windows 10 with PowerShell version 6. Even though the commands I’ll be showing you might work fine on older versions of PowerShell, it’s always a good idea to work alongside me with the same version, if possible.

You’ll also need to have the Azure PowerShell module installed. This module contains hundreds of various cmdlets and sub-modules. The one we’ll be focusing on is called Azure.RM. This contains all of the cmdlets we’ll need to provision a VM in Azure.

Building a VM in Azure isn’t quite as simple as New-AzureVM; far from it actually. Granted, you might already have much of the underlying infrastructure required for a VM, but how do you build it out, I’ll be going over how to build every component necessary and will be assuming you’re beginning to work from a blank Azure subscription.

At its most basic, an ARM VM requires eight individual components

  1. A resource group
  2. A virtual network (VNET)
  3. A storage account
  4. A network interface with private IP on VNET
  5. A public IP address (if you need to access it from the Internet)
  6. An operating system
  7. An operating system disk
  8. The VM itself (compute)

In order to build any components between numbers 2 and 7, they must all reside in a resource group so we’ll need to build this first. We can then use it to place all the other components in. To create a resource group, we’ll use the New-AzureRmResourceGroup cmdlet. You can see below that I’m creating a resource group called NetWatchRG and placing it in the East US datacenter.

New-AzureRmResourceGroup -Name 'NetWatchRG' -Location 'East US'

Next, I’ll build the networking that is required for our VM. This requires both creating a virtual subnet and adding that to a virtual network. I’ll first build the subnet where I’ll assign my VM an IP address dynamically in the 10.0.1.0/24 network when it gets built.

$newSubnetParams = @{
'Name' = 'NetWatchSubnet'
'AddressPrefix' = '10.0.1.0/24'
}
$subnet = New-AzureRmVirtualNetworkSubnetConfig @newSubnetParams

Next, I’ll create my virtual network and place it in the resource group I just built. You’ll notice that the subnet’s network is a slice of the virtual network (my virtual network is a /16 while my subnet is a /24). This allows me to segment out my VMs

$newVNetParams = @{
'Name' = 'NetWatchNetwork'
'ResourceGroupName' = 'MyResourceGroup'
'Location' = 'West US'
'AddressPrefix' = '10.0.0.0/16'
'Subnet' = $subnet
}
$vNet = New-AzureRmVirtualNetwork @newVNetParams

Next, we’ll need somewhere to store the VM so we’ll need to build a storage account. You can see below that I’m building a storage account called NetWatchSA.

$newStorageAcctParams = @{
'Name' = 'NetWatchSA'
'ResourceGroupName' = 'NetWatchRG'
'Type' = 'Standard_LRS'
'Location' = 'East US'
}
$storageAccount = New-AzureRmStorageAccount @newStorageAcctParams

Once the storage account is built, I’ll now focus on building the public IP address. This is not required but if you’re just testing things out now it’s probably easiest to simply access your VM over the Internet rather than having to worry about setting up a VPN.

Here I’m calling it NetWatchPublicIP and I’m ensuring that it’s dynamic since I don’t care what the public IP address is. I’m using many of the same parameters as the other objects as well.

$newPublicIpParams = @{'Name' = 'NetWatchPublicIP''ResourceGroupName' = 'NetWatchRG''AllocationMethod' = 'Dynamic' ## Dynamic or Static'DomainNameLabel' = 'NETWATCHVM1''Location' = 'East US'}$publicIp = New-AzureRmPublicIpAddress @newPublicIpParams
Once the public IP address is created, I then need somehow to get connected to my virtual network and ultimately the Internet. I’ll create a network interface again using the same resource group and location again. You can also see how I’m slowly building all of the objects I need as I go along. Here I’m specifying the subnet ID I created earlier and the public IP address I just created. Each step requires objects from the previous steps.
$newVNicParams = @{
'Name' = 'NetWatchNic1'
'ResourceGroupName' = 'NetWatchRG'
'Location' = 'East US'
'SubnetId' = $vNet.Subnets[0].Id
'PublicIpAddressId' = $publicIp.Id
}
$vNic = New-AzureRmNetworkInterface @newVNicParams
Once we’ve got the underlying infrastructure defined, it’s now time to build the VM.
First, you’ll need to define the performance of the VM. Here I’m choosing the lowest performance option (and the cheapest) with a Standard A3. This is great for testing but might not be enough performance for your production environment.
$newConfigParams = @{
'VMName' = 'NETWATCHVM1'
'VMSize' = 'Standard_A3'
}
$vmConfig = New-AzureRmVMConfig @newConfigParams
Next, we need to create the OS itself. Here I’m specifying that I need a Windows VM, the name it will be, the password for the local administrator account and a couple of other Azure-specific parameters. However, by default, an Azure VM agent is installed anyway but does not automatically update itself. You don’t explicitly need a VM agent but it will come in handy if you begin to need more advanced automation capabilities down the road.
$newVmOsParams = @{
'Windows' = $true
'ComputerName' = 'NETWATCHVM1'
'Credential' = (Get-Credential -Message 'Type the name and password of the local administrator account.')
'ProvisionVMAgent' = $true
'EnableAutoUpdate' = $true
}
$vm = Set-AzureRmVMOperatingSystem @newVmOsParams -VM $vmConfig
Next, we need to pick what image our OS will come from. Here I’m picking Windows Server 2016 Datacenter with the latest patches. This will pick an image from the Azure image gallery to be used for our VM.
$newSourceImageParams = @{
'PublisherName' = 'MicrosoftWindowsServer'
'Version' = 'latest'
'Skus' = '2016-Datacenter'
'VM' = $vm
}$offer = Get-AzureRmVMImageOffer -Location 'East US' -PublisherName 'MicrosoftWindowsServer'
$vm = Set-AzureRmVMSourceImage @newSourceImageParams -Offer $offer.Offer
Next, we’ll attach the NIC we’ve built earlier to the VM and specify the NIC ID on the VM that we’d like to add it as in case we need to add more NICs later.
$vm = Add-AzureRmVMNetworkInterface -VM $vm -Id $vNic.Id
At this point, Azure still doesn’t know how you’d like the disk configuration on your VM. To define where the operating system will be stored, you’ll need to create an OS disk. The OS disk is a VHD that’s stored in your storage account. Here I’m putting the VHD in a VHDs storage container (folder) in Azure. This step gets a little convoluted since we must specify the VhdUri. This is the URI to the storage account we created earlier.
$osDiskUri = $storageAcct.PrimaryEndpoints.Blob.ToString() + "vhds/" + $vmName + $osDiskName + ".vhd"

$newOsDiskParams = @{
'Name' = 'OSDisk'
'CreateOption' = 'fromImage'
'VM' = $vm
'VhdUri' = $osDiskUri
}

$vm = Set-AzureRmVMOSDisk @newOsDiskParams
Ok, Whew! We now have all the components required to finally bring up our VM. To build the actual VM, we’ll use the New-AzureRmVM cmdlet. Since we’ve already done all of the hard work ahead of time, at this point, I simply need to pass the resource group name, the location, and the VM object which contains all of the configurations we just applied to it.
$newVmParams = @{
'ResourceGroupName' = 'NetWatchRG'
'Location' = 'East US'
'VM' = $vm
}
New-AzureRmVM @newVmParams

Your VM should now be showing up under the Virtual Machines section in the Azure portal. If you’d like to check on the VM from PowerShell you can also use the Get-AzureRmVM cmdlet.

Now that you’ve got all the basic code required to build a VM in Azure, I suggest you go and build a PowerShell script from this tutorial. Once you’re able to bring this code together into a script, building your second, third or tenth VM will be a breeze!

One final tip, in addition to managing Azure Portal through a browser, there are mobile apps for IOS and Android and now the new Azure portal app (Currently in Preview).  It gives you the same experience as the Azure Portal, without the need of a browser, like Microsoft Edge or Google Chrome.  Great for environments that have restrictions on browsing.

Until next time, Rob…

Azure Migration: A 6-Step Checklist

In most cases, a lift-and-shift cloud migration does little more than provide basic redundancy. A better approach—that offers better efficiency and better value—is to move cloud-ready workloads over to Azure, keep legacy applications on-premise, and set up orchestration to manage cloud recovery and backup.

Following general evaluation and planning, when you reach consensus from each team on the cloud migration plan, you’ll need to execute the plan. Getting down to the details in your mind, you’ll find yourself asking: How do I proceed? In this guide, I’ll break down the major steps involved in each phase of the Azure migration process. Continue reading

Microsoft Ignite 2017 Summary and Announcements

Ignite 2017 Key takeaways

This was the first year I have not attended Microsoft Ignite, due to unforeseen circumstances. But this didn’t stop me from covering Ignite 2017. So here we go…

Ignite 2017 this year has about 25k attendees. During the same time as Ignite, they are also running Microsoft Envision. This is more focused to business leaders across industries.  Its main focus is to have Business Leaders understand and manage their organizations in the Digital Age.

Ignite 2017 Attendee Breakout

  • 47 % ITI/IT Pros
  • 34% Developers
  • 19% ITDM.

Top Industries Attended

  • 34% IT and Software (flat YoY)
  • 20% Education
  • 9% Healthcare
  • 9% Manufacturing
  • 9% Professional & Business Services

Ignite Keynotes Summary and Links

ignite2017

Modern Workplace

Key Takeaways – Modern Workplace

Expanding Microsoft 365

  • Microsoft 365 Firstline offering and Microsoft 365 Education
  • New Windows 10 S devices from HP, Lenovo, Acer and Fujitsu starting at $275 USD

Intelligent personalized search power by Microsoft Graph

  • Bing for business
  • LinkedIn data integrated with Office 365 profile card
  • Office 365 search & discovery improvements
  • Windows 10 taskbar search

Intelligent Communications vision

  • Bring voice and video + new cognitive and data services into Micro Teams

Advances in Intelligent Security

  • Integrated Adminced threat Protection using Intelligent Security Graph
  • Better data protection and access control across Microsoft 365
  • New Compliance Manager, a single GDPR dashboard

Modernizing Business Process with Cloud and AI

Key Takeaways – Business Applications

New Microsoft Dynamics 365 AI Solutions

  • First solutions for customer care includes a virtual agent for customers, an intelligent assistant for support staff and conversational AI management tools, power by Microsoft AI
  • HP, Macy’s, and Microsoft already using this technology to improve customer satisfaction and handle more requests, more quickly

Modular apps for Dynamics 365

  • New modular apps are lightweight SaS services designed to transform one business process at a time
  • Work with Dynamics 3 business apps or can be used independently
  • Extend existing systems of record, integrate with Office 365 and augment with LinkedIn insights.
  • First to allow talent leaders and hiring managers to address a company’s most important asset, people
  • Attract: focused on recruiting | Onboard: helps you make new employees successful – Available later this year.

Deeper integration for PowerApps and Microsoft Flow + Office 365 and Dynamics 365

  • Rapidly build apps, automate tasks, simplify workflows and solve unique business problems.
  • Allow any business user familiar with InfoPath forms, Access databases or SharePoint list. This allows customers to build apps that help them achieve more, on a single no-code/low code platform.

Apps and Infra/Data and AI

  • Every customer is an AI customer

The Enterprise Cloud

Key Takeaways – Hybrid

Delivering true hybrid consistency

  • Azure Stack shipping through OEM partners including Dell EMC, HPE, and Lenovo
  • Database Migration Service (DMS)

Empowering customer to optimize costs

  • Azure Hybrid Benefit for SQL server
  • Azure Cost Management by CFloudyn – free to all Azure subscriptions

Key Takeaways – Intelligence

Any data, any place

  • SQL Server on Linux Windows and Docker availability with SQL Server 2017 GA’

One convenient workbench for data scientists and AI developers

  • Azure Machine Learning Updates

Build intelligent apps at global scale

  • Azure Cosmos DB and Azure Functions integration

Performance and Scale for mission-critical analytic apps

  • Azure SQL Data Warehouse preview release of new “optimized for compute” performance tier

Cloud for Good – Key takeaways

To empower nonprofits, Microsoft Philanthropies will:

  • Microsoft has announced they met their 2016 commitment to donate $1 billion in cloud computing resources to nonprofits
  • Continue the cloud donations program, and triple the number of nonprofits Microsoft serves over the next three years
  • Launch a new Tech for Social Impact group, and the first offers, announced this week include:
    • Microsoft 365 for Nonprofits
    • Nonprofit Surface discounts for the first time ever

To get more detailed information about these announcements, please see links below or check out the Ignite2017 Site.

Official Microsoft Blog
Office Blogs
EMS Blog
Dynamics Blog
Azure Blog
Hybrid Cloud Blog
Data Platform Blogs


Until next time, Rob.

Microsoft Azure Cloud Series – Azure External Connectivity Options – Part 4

Hello Everyone….Today I will go over the Azure External Connectivity Options.  There is a lot flexibility depending your needs of your workload/application with Azure.

Continue reading

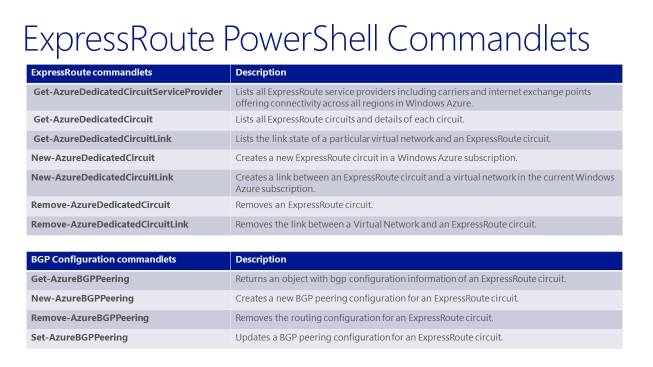

Azure ExpressRoute….Explained….
