Yo everyone…This is going to be a short blog post in this series. I am just covering Networking and Storage QoS as it pertains to S2D. There are the technologies the bind S2D together.

Storage QoS

S2D is using the Storage (QoS) Quality of Service that ships with Windows Server 2016 which provides standard min/max IOPS and bandwidth control. QoS policy can be applied at the VHD, VM, Groups of VMs, or Tenant Level. Benefits include:

  • Mitigate noisy neighbor issues. By default, Storage QoS ensures that a single virtual machine cannot consume all storage resources and starve other virtual machines of storage bandwidth.
  • Monitor end to end storage performance. As soon as virtual machines stored on a Scale-Out File Server are started, their performance is monitored. Performance details of all running virtual machines and the configuration of the Scale-Out File Server cluster can be viewed from a single location
  • Manage Storage I/O per workload business needs Storage QoS policies define performance minimums and maximums for virtual machines and ensures that they are met. This provides consistent performance to virtual machines, even in dense and overprovisioned environments. If policies cannot be met, alerts are available to track when VMs are out of policy or have invalid policies assigned.

Storage QOS & Networking

What’s New in Networking with S2D?

In Windows Server 2016, they added Remote Direct Memory Access (RDMA) support to the Hyper-V virtual switch.

For those that don’t know what RMDA is it technology that allows direct memory access from one computer to another, bypassing TCP layer, CPU , OS layer and driver layer. Allowing for low latency and high-throughput connections. This is done with hardware transport offloads on network adapters that support RDMA.

Back to Hyper-V virtual switch support for RDMA.  This allows you to configure regular or RDMA enabled vNICs on top of a pair of RDMA capable physical NICs. They also added embedded NIC teaming or Switch Embedded Teaming (SET).

SET is where NIC teaming and the Hyper-V switch is a single entity and can now be used in conjunction with RDMA NICs, wherein Windows 2012 Server you needed to have separate NIC teams for RDMA and Hyper-V Switch.

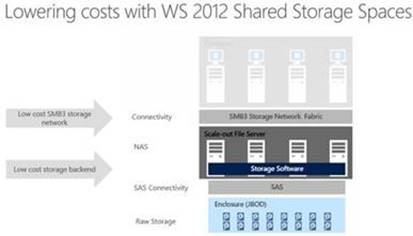

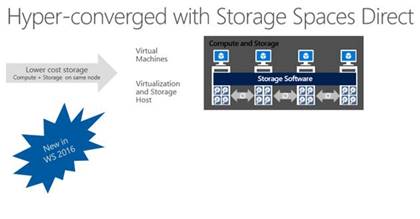

The images below illustrates the architecture changes between Windows Server 2012 R2 and Windows Server 2016.

Storage QOS & Networking

Storage QOS & Networking

Next up…Management and Operations, Until next time, Rob


Storage Spaces Direct Explained – Fault Tolerance and Multisite Replication



Fault Tolerance…What does it mean?  Let me break it down simply. Pictured above is just a bad design, not fault tolerance. This is not really what fault tolerance means. Having two or more of something is one factor, but how it’s implanted is just as important.  Fault Tolerance incorporates two very important principles, High Availablity and Redundancy.

Now if we had a few toilets side by side and kept only 1 open and the other 2 on standby. Also, if it could move the user automatically to another toilet during a failure, then it technically it would be fault tolerant. Anyways, let’s move on from toilets to the real world. 🙂


Simply, Fault Tolerance is the ability to continue non-stop when a hardware failure occurs. A fault-tolerant system is designed from the ground up for reliability by building multiples of all critical components, such as CPUs, memories, disks and power supplies into the same computer. In the event one component fails, another takes over without skipping a beat.

Many systems are designed to recover from a failure by detecting the failed component and switching to another computer system. These systems, although sometimes called fault tolerant, are more widely known as “high availability” systems, requiring that the software resubmits the job when the second system is available.

True fault tolerant systems with redundant hardware are the most costly because the additional components add to the overall system cost. However, fault tolerant systems provide the same processing capacity after a failure as before, whereas high availability systems often provide reduced capacity. Ok, let move on to fault tolerance in S2D.

Fault Tolerance in S2D

Storage Space Direct (S2D) uses 3-way mirroring and will spread those mirrors across 3 different servers in the cluster. S2D supports full chassis and rack awareness and gives you the option to distribute data copies across these fault domains.

For disk failures, S2D also uses a self-healing approach… in basic terms, S2D offlines the disk and rebuilds the data copy on another node in the cluster. Replacing a drive adds capacity back into the system.  This is important note as not all HCI vendors support self-healing, For example, on VSAN and some other vendors, disk failures take out entire vDisks.

Fault Tolerance Fault Tolerance Fault Tolerance Fault Tolerance

Multisite Replication

S2D uses Storage Replica (that ships with Windows Server 2016) for synchronous or async replication. They support both stretched clusters and cluster to cluster DR. Storage Replica is part of Windows Server  can be used for other data replication needs outside of S2D.

Fault Tolerance Fault Tolerance

Ok…Next up, Storage QOS and Networking, until next time, Rob….
